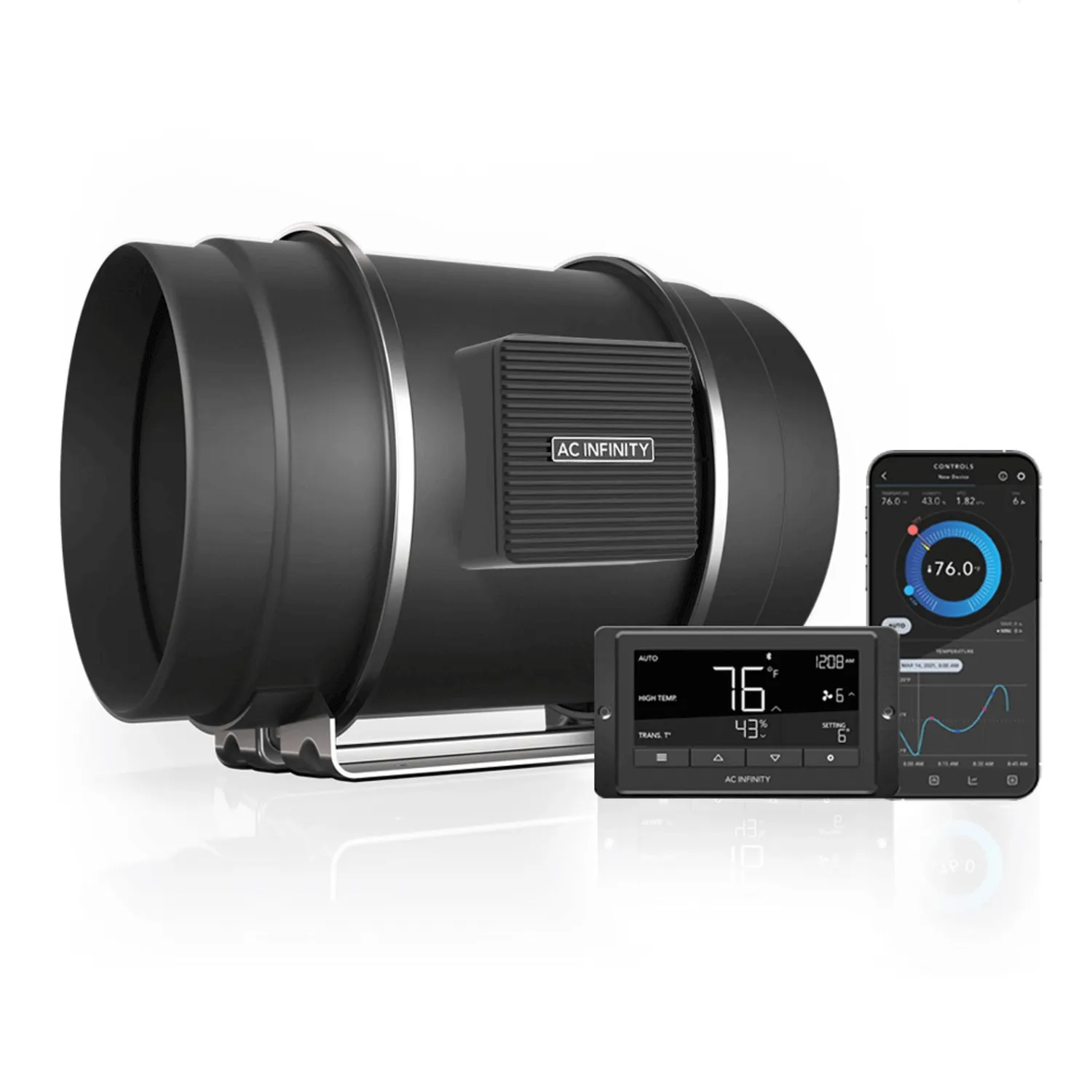

Name: AC Infinity CLOUDLINE T8, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 8-Inch
SKU: 76967

Description

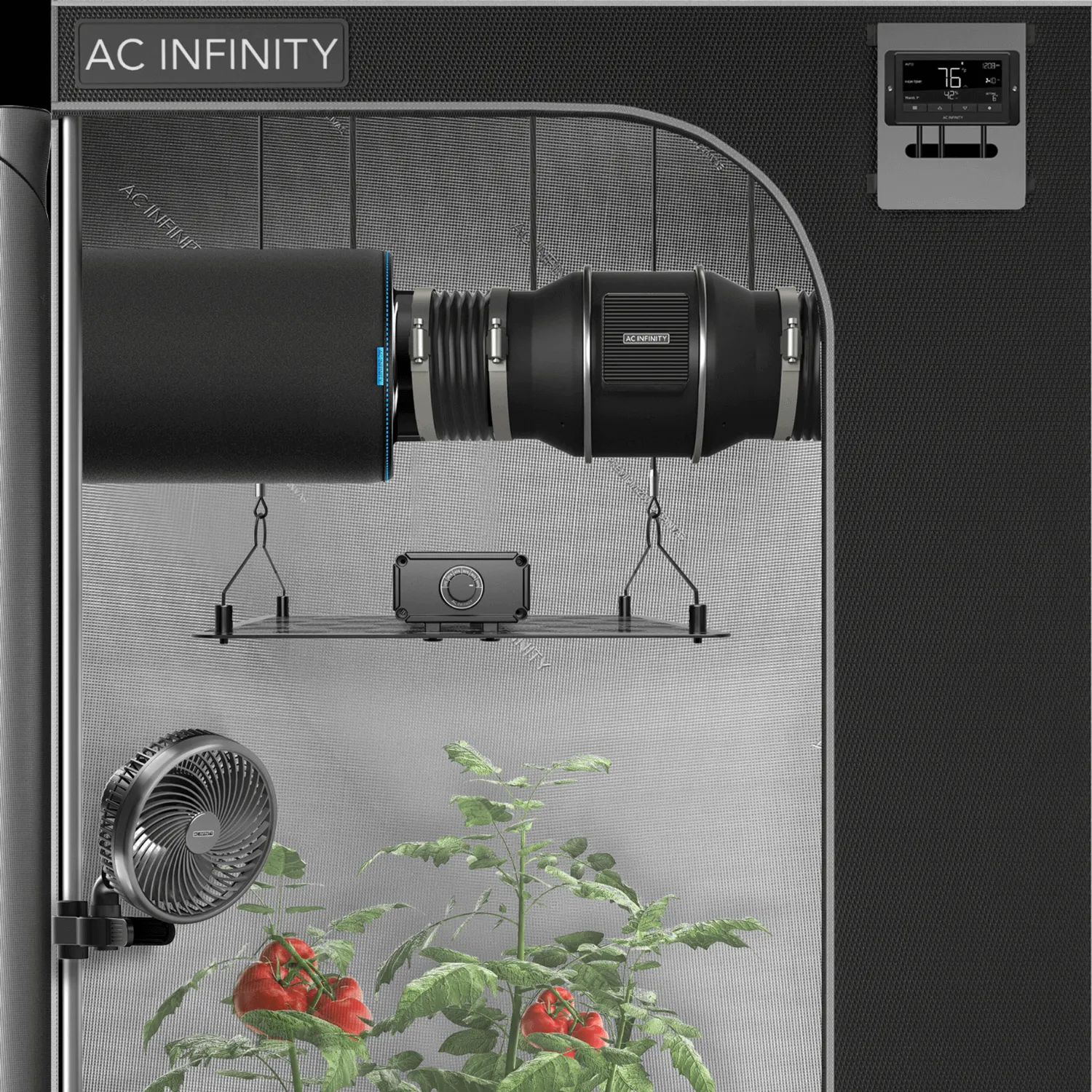

Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.

Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.

Connect with our app via Bluetooth to access advance programs, alarms, notifications, and view climate data.

Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.

Duct Size: 8” | Dimensions: 8.5 x 11.9 x 9.2 in. | Airflow: 807 CFM | Noise: 39 dBA | Bearings: Dual Ball

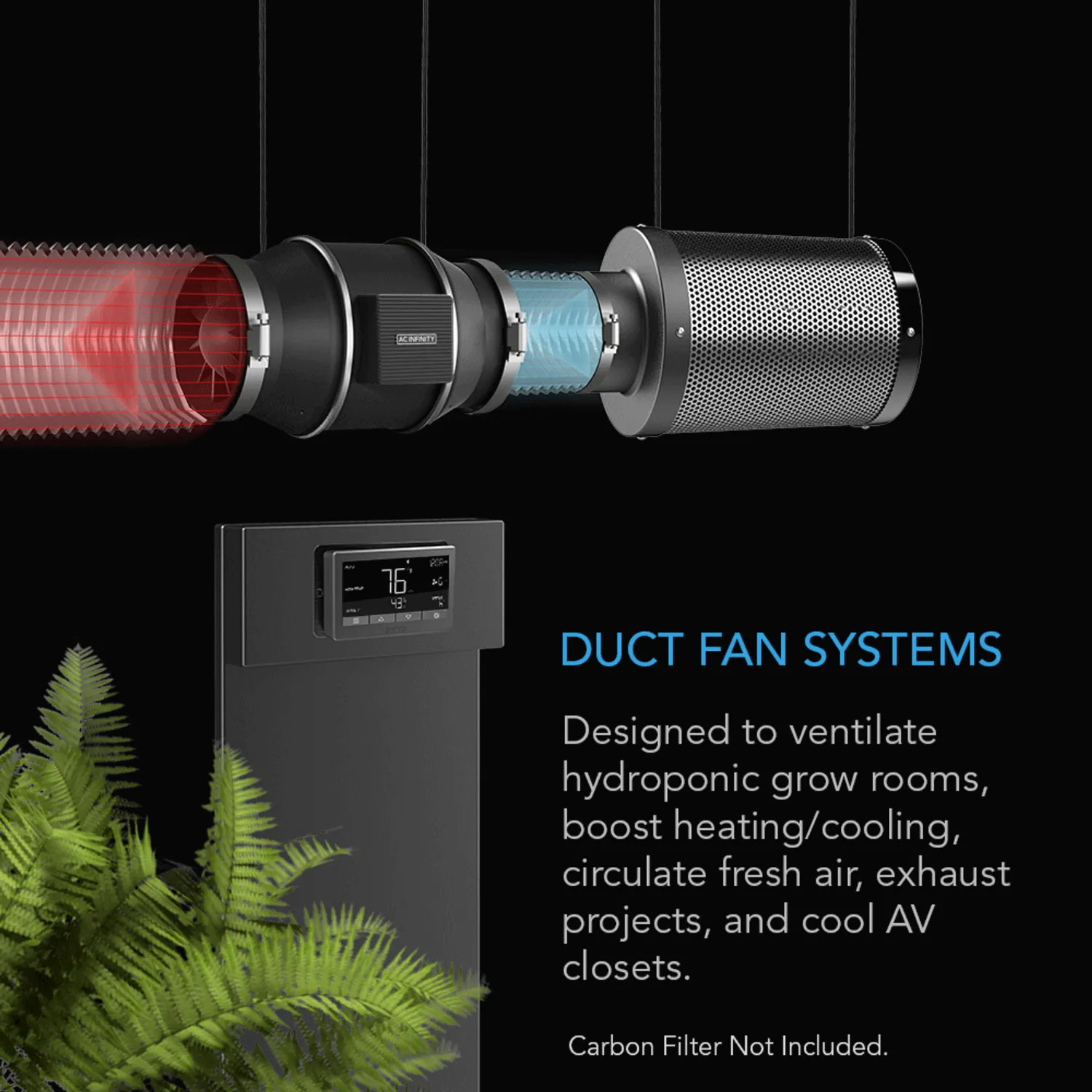

Product Description: A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming, and can connect to one additional fan. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

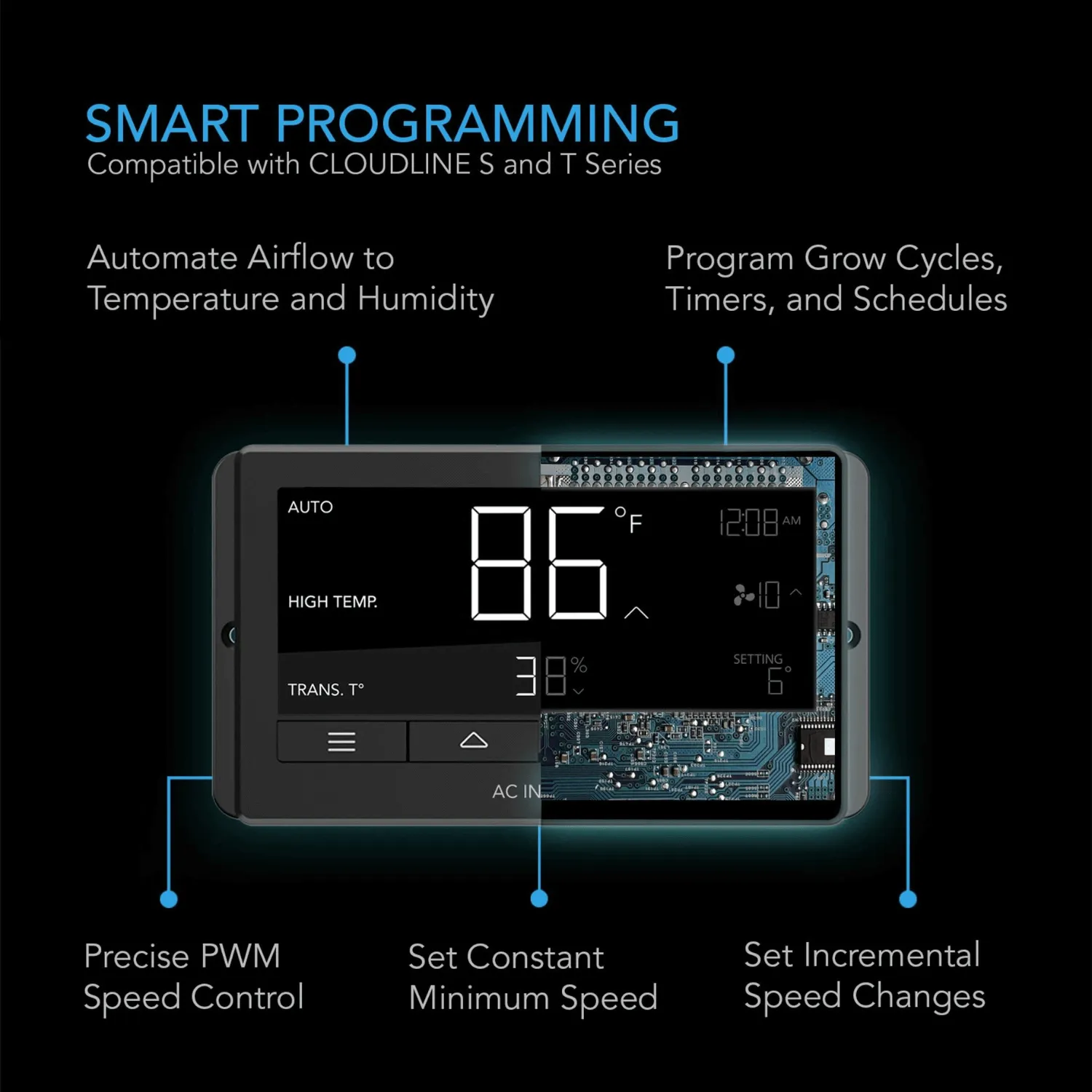

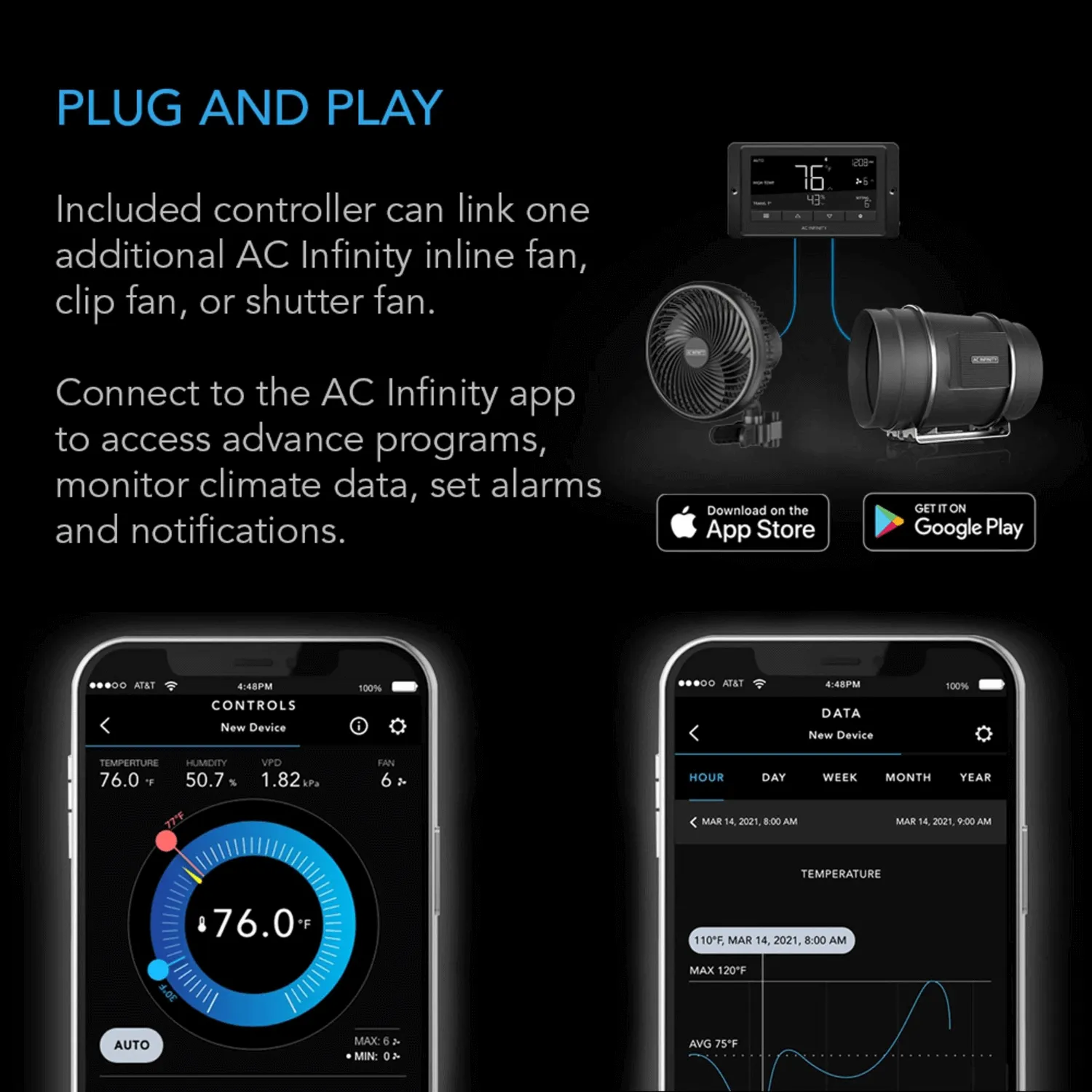

Smart Controller: Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity App via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to two AC Infinity fans with EC Motors including other CLOUDLINE fan sizes, and CLOUDRAY clip-on circulation fans.

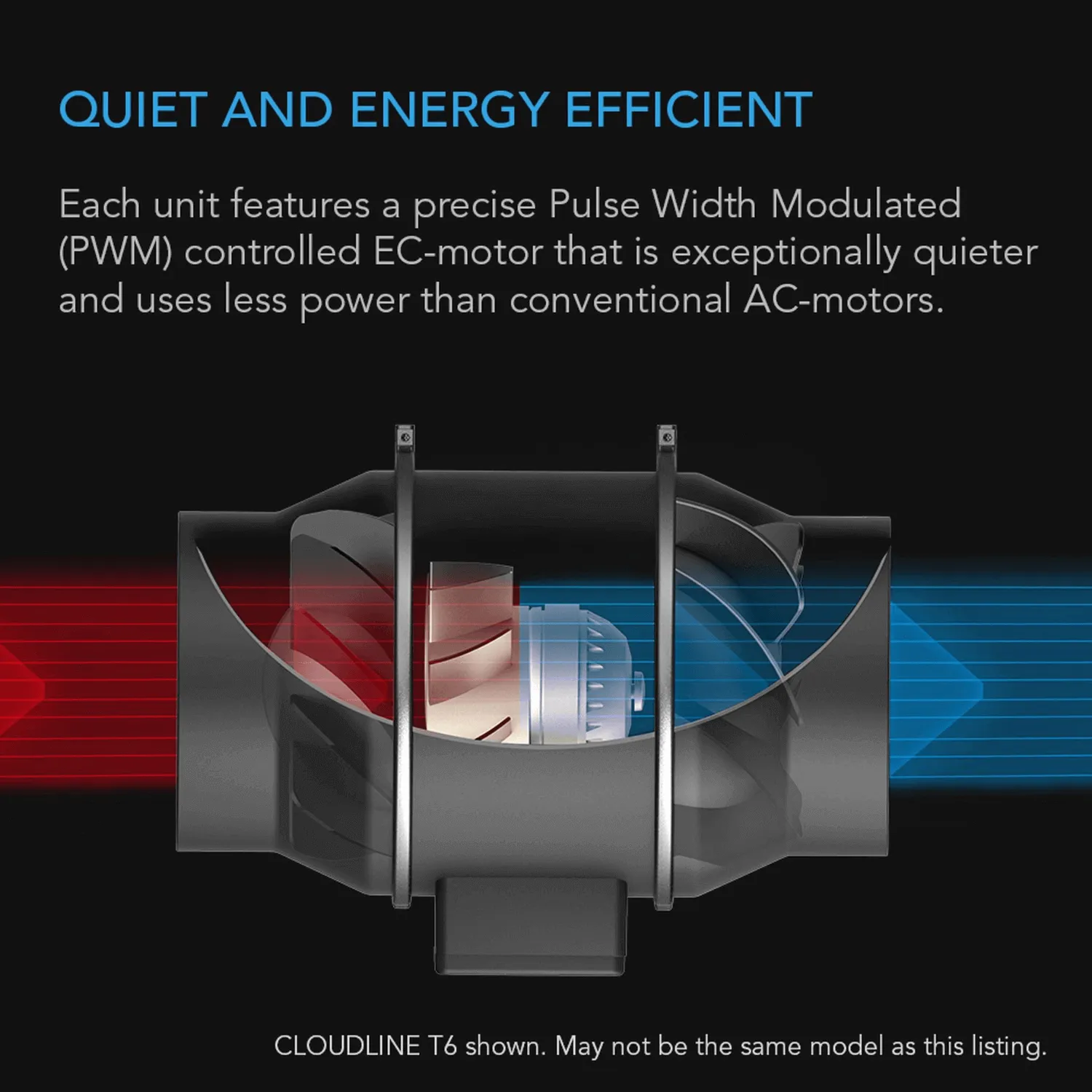

Quiet and Energy Efficient Design: Unlike common duct fans that uses an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

Application: This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE T8

Product Model: AI-CLT8

UPC Code: 819137020276

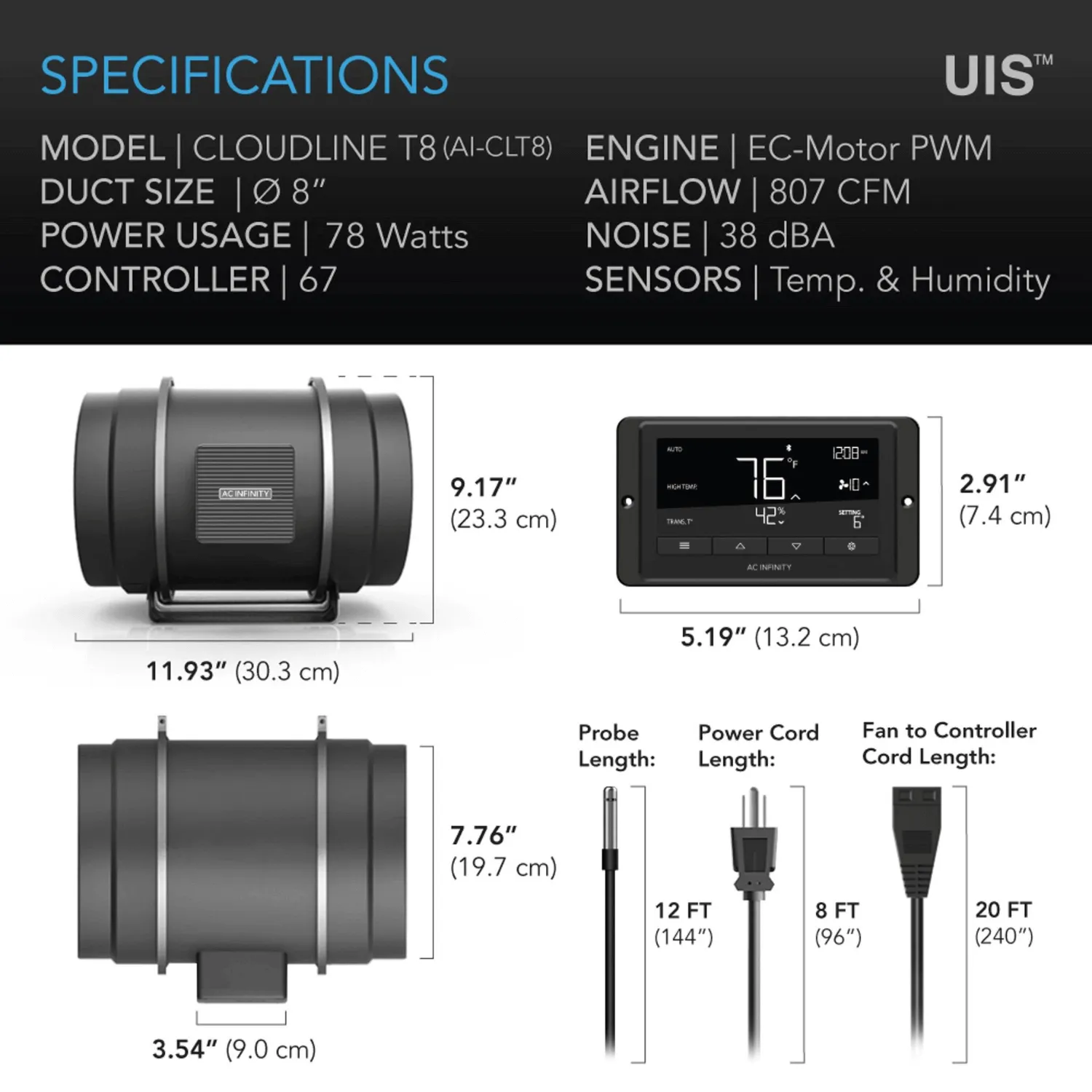

Product and Mounting Dimensions - Fan Unit

Duct Size: 8"

Total Dimensions: 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)

Mounting Hole-To-Hole Distance: 3.94 x 3.70 in. (10.0 x 9.4 cm)

Screw Hole Size: Ø 0.217 in. (Ø 0.55 cm)

Cord Length to Controller: 240 in. (20 feet)

Cord Length to Plug: 96 in. (8 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs

Total Airflow: 807 CFM

Total Noise: 39 dBA

Static Pressure: 746 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 110 W

Average Power Usage: 78 W

Current: 2.27 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheets

Download the data sheet:

Download the CE Certification:

Download the SAA Certification:

Download the ETL Certification:

Download the FCC Certification:

Download the RoHS Certification:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Media

Price Match Guarantee

Shop safe knowing that Grow Tents Depot offers the lowest prices on all of our products - all the time - guaranteed!

We work very hard to ensure that we always have the absolute best prices online, so we make this guarantee knowing that if you find a lower price somewhere else, we will match or even beat our competitor's price!

Simply follow the instructions in our price match policy page to take advantage of this offer!

Shipping, Returns, and Cancellations

Order Confirmation:

As soon as your order is placed, an order confirmation e-mail will be sent to you. This means that your order has been successfully entered into our system and that we have pre-authorized your payment method for the purchase. In rare cases, if your product is unavailable or delayed, we will contact you and see if you would like to either wait for your item(s) to become available, change your order, or simply be refunded for your cancelled item(s). If your item(s) are immediately available, we will process your order and arrange for soonest possible shipment. Please note that once the order is processed we are unable to change the shipping address.

Order Shipment:

We offer FREE SHIPPING on all orders in the USA and currently only service the lower 48 states. Most items are shipped within 1 to 3 business days and shipping time is typically between 1 to 7 business days. There are some products that have a slightly longer lead time and this will be indicated on the individual product pages if applicable. Once your order has shipped, we will send you the tracking information as soon as it becomes available. If a week or more has gone by and you still have not received the tracking information (or the number is not working), please reach out to us right away.

Cancellations and Refunds:

If you need to cancel your order, please reach out to us as soon as possible. Cancelled orders are subject to a 5% administrative fee (for credit card, debit card, Amazon Pay, Coinbase, and Facebook orders) or an 8% administrative fee (for Affirm, Shop Pay Installments, and Sezzle orders). We can accommodate most cancellation and refund requests, however if a product has been arranged to ship or has shipped, then the item will be treated as a return and will potentially be subject to return shipping costs and restocking fees. Any refunds that may be issued will only be issued to the original payment method used when placing your order and only after the return has been confirmed to be received back in its original condition.

Returns:

Please see our full return policy at the footer of this page for brand-specific details. A restocking fee of 5-25% may apply on returns within the dates of the brand-specific return policies. If you would like to proceed with a return, please reach out to us to receive the precise return instructions and clarification on the restocking fees for your item(s).

Warranty

Grow Tents Depot only sells brand new products, never used, and therefore all items come with full manufacturer warranties if offered. Please note that Grow Tents Depot is not responsible for replacing or repairing your product while under warranty as this is the manufacturer's commitment to you. However, Grow Tents Depot would be happy to assist you in getting your product repaired or replaced by coordinating with the manufacturer.

If you would like us to assist with a warranty claim, please reach out to support with the following information:

Your order number.

Your shipping address.

A brief description of the issue.

Any photos or videos demonstrating the issue.

AC Infinity CLOUDLINE T8, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 8-Inch

Product Details

Description

Specifications

Data Sheets

Bulk Discount

Media

Price Match Guarantee

Shipping, Returns, and Cancellations

Warranty

You May Also Like

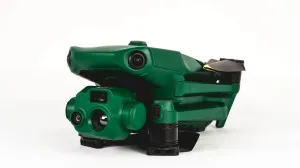

ANZU ROBOTICS RAPTOR T | THERMAL RTK DRONE | 45MIN FLIGHT TIME / RAPTORT01

100 Watt WRGB 12v Flood Light

4000016710 Accessories | Genuine Haulotte

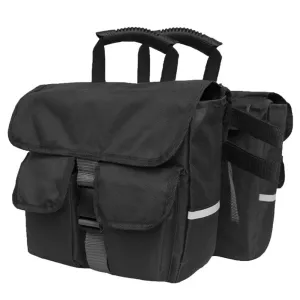

Bicycle Back Pannier Bags Bike Rear Seat Bag Bike Rear Saddle Bag with Reflective Trim For Outdoor Cycling

184pcs/Set Fishing Accessories Kit Outdoor Fishing Supplies Including Hook Sinker Weights Fishing Line Beads with Tackle Box

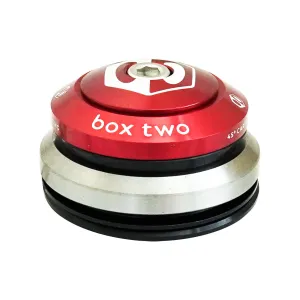

Box Two Oversized 1-1/8 - 1.5 Inch Tapered Headset

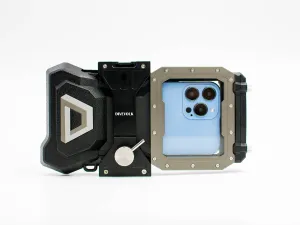

DiveVolk SeaTouch 4 Max Underwater Smarphone Housing-Black

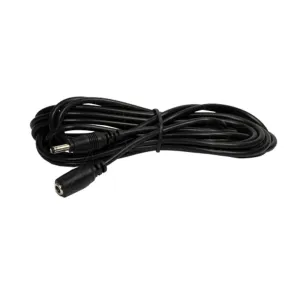

3 metre USB Extension Cable with adaptor socket for enecharger ADAP, CC1224U & HCUSB charger range

Set of 2 Outdoor Acacia Wood Club Accent Chairs w/ Water-Resistant Cushions

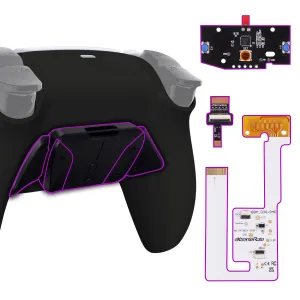

eXtremeRate Remappable RISE4 V3 Remap Kit for PS5 Controller BDM-030/040/050 - Black - YPFP3001G4
